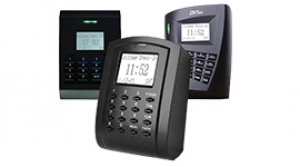

ZKTeco SC-103 / 403 / 503 RFID

The SC Series (SC-103,403 and 503) is a Time & Attendance and access control terminal with incorporated proximity reader (EM by default).

It can connect to access control or time & attendance management software by Ethernet or RS232/485 port, and also operate on standalone mode, downloading data by USB pendrive. For access control, it allows time zones and groups, holidays management, anti-passback functions and the relay can be connected to lock or external siren. It includes wiegand port to connect external proximity reader and it can be used as a controller’s external reader using Wiegand Out port.

Download PDF :  zkteco_sc-series SC103 SC403 SC503





Features
Access Control Alarm Multilanguage  Bell Door Lock EM RFID Standard Firmware  Linux O.S  Exit button  Ethernet / RJ-45  RS-232 / RS-485 SDK Time & Attendance USB Host Voices Wiegand In/Out ZEM500
Optional
External Siren HID RFID MF RFID Webserver  Customized Firmware
  • Time & Attendance and access control device
  • Incorporates EM reader and optional Mifare, HID, etc..
  • Stores up to 30000 users and cards.
  • Stores up to 50.000 log records without PC download.
  • Allows communication with PC through Ethernet and RS232/485
  • Optionally, it can used to connect an external siren
  • Time zones, groups and holidays management for access control
  • Advanced functions for access control such as anti-passback, bell button, etc…
  • Optionally, it can include Web Server function.
  • Events management (doctor, personal issues, etc…)
  • Multi-language in text and audio

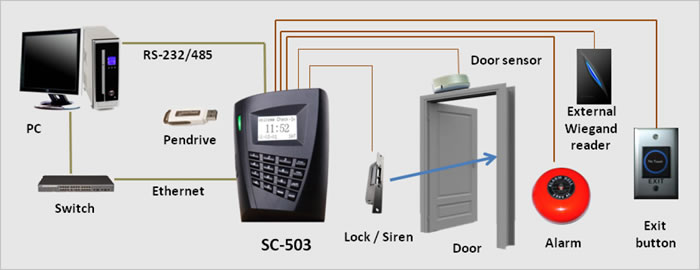

SC-Series 2

Capacity
ID Card Capacity 10.000
Transaction Capacity 50.000
Hardware
Platform ZEM500
CPU 32 bit ZK6001 microprocessor 400MHz
Memory 4M RAM, 16M Flash
Proximity EM Module
Relay contacts Lock control, Alarm, door sensor, exit button
Display
LCD B&W LCD
LED Indicator Red / Green
Environment
Oper. Temp 0°-45°C
Oper. Humidity 20%-80%
Power
Power 12V, DC 3A
Communication
Comm. Port Ethernet, RS232/485
Pen drive USB-host
Wiegand In&Out
Proximity Module
Type EM card
Identification <=1 second
Languages
Available All European languages
Maximum 3
Voices Allowed
Keypad
Type Standard Keypad 4×4
Function Keys 4
Dimensions
Dimensions 129.5x95x48.5mm (L x W x D)
Weight 0.7Kg
Firmware
O.S Linux
Applications T&A, AC (groups and TZ)
SDK Standard SDK
